2007 lincoln Town Car passenger side blend door and recirculation door wiring

[Joe Purdy]

I have a 07 Town Car, I replaced the passenger side blend door actuator a few months back. Everything started working fine until last week. After checking the circuit out I found some previous wiring repairs that seem to be less than par. The red/wh wires that connect blend door motors is cut and spliced all together. Well actually twisted and taped. I un taped and separated to find one of the ends has 6v. Same thing with a br/gr wire. I'm guessing they are signal wires. I ordered a Haynes Manual but it only has chassis wiring. Does anyone have a schematic. Ahhh also under passenger floor carpet I found 3 pink wires twisted and taped as well. When they are disconnected air suspension warning as well as some other warnings come on in the dash. I'm believing they have something to do with water bus the suspension is on. But I'm not concerned with those at this time. my major concern is the rd/wh for blend doors. I'm guessing a connector was corroded and bypassed at one point but I know these wires shouldn't be together. Again any help would be greatly appreciated.



[TucsonMTB]

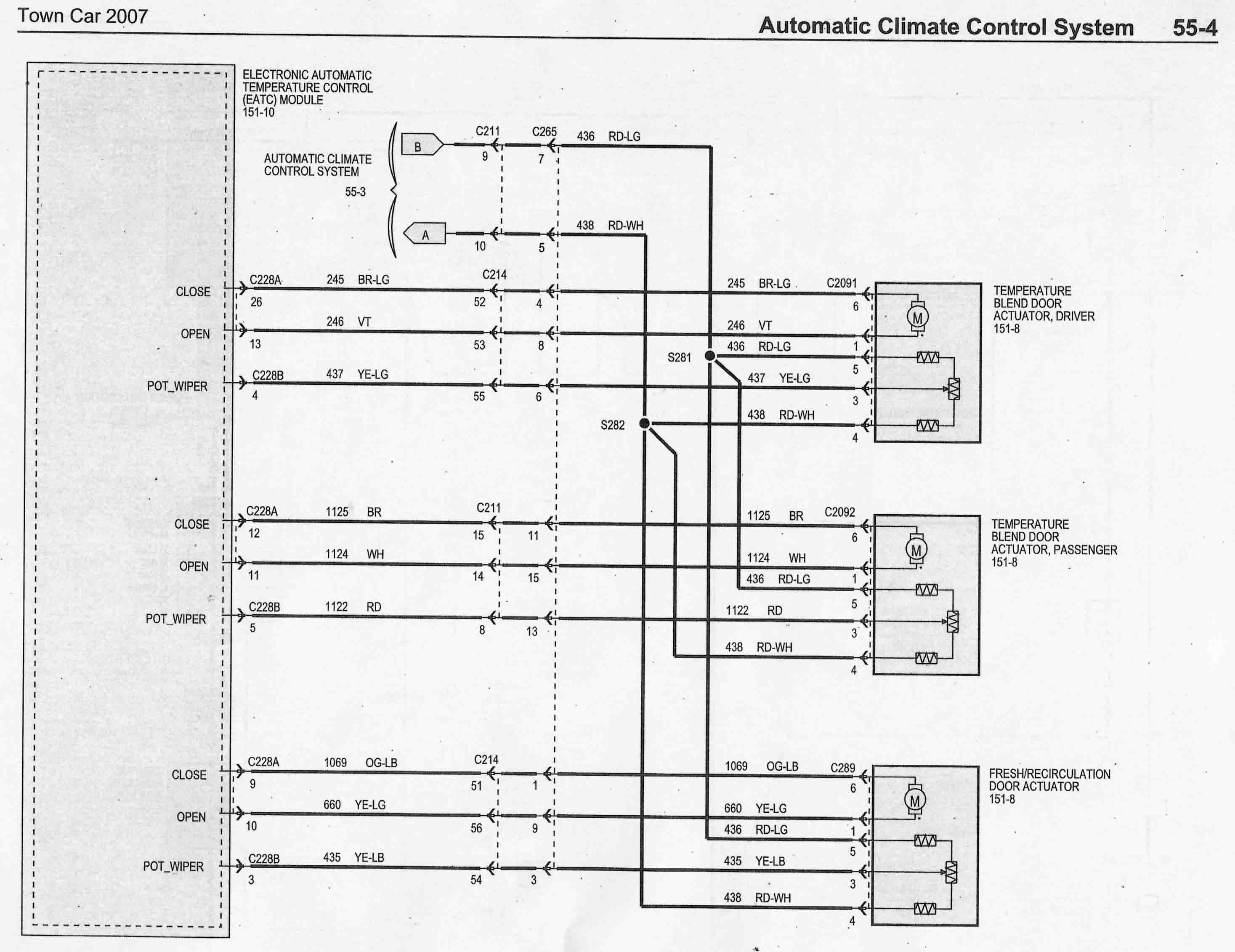

This seens to be the only page showing blend doors in my "Wiring Diagrams 2007 Town Car" book.

Right click, select "View Image", and then click on the result to see it full size. Hope it helps . . .
